Analysis of A Fully Automatic Nipple Drinker System

1. Introduction

In the modern poultry farming industry, the scientific and efficient drinking system has a profound impact on poultry growth, health, and profitability. With its precise structural design and superior functionality, the fully automatic nipple drinker system has become a key device for optimizing poultry drinking, providing farming companies with an intelligent and healthy drinking water management model and driving industry upgrades and development.

2. Structure and Component Functions of the Fully Automatic Nipple Drinker System

2.1 Overall Structural Overview

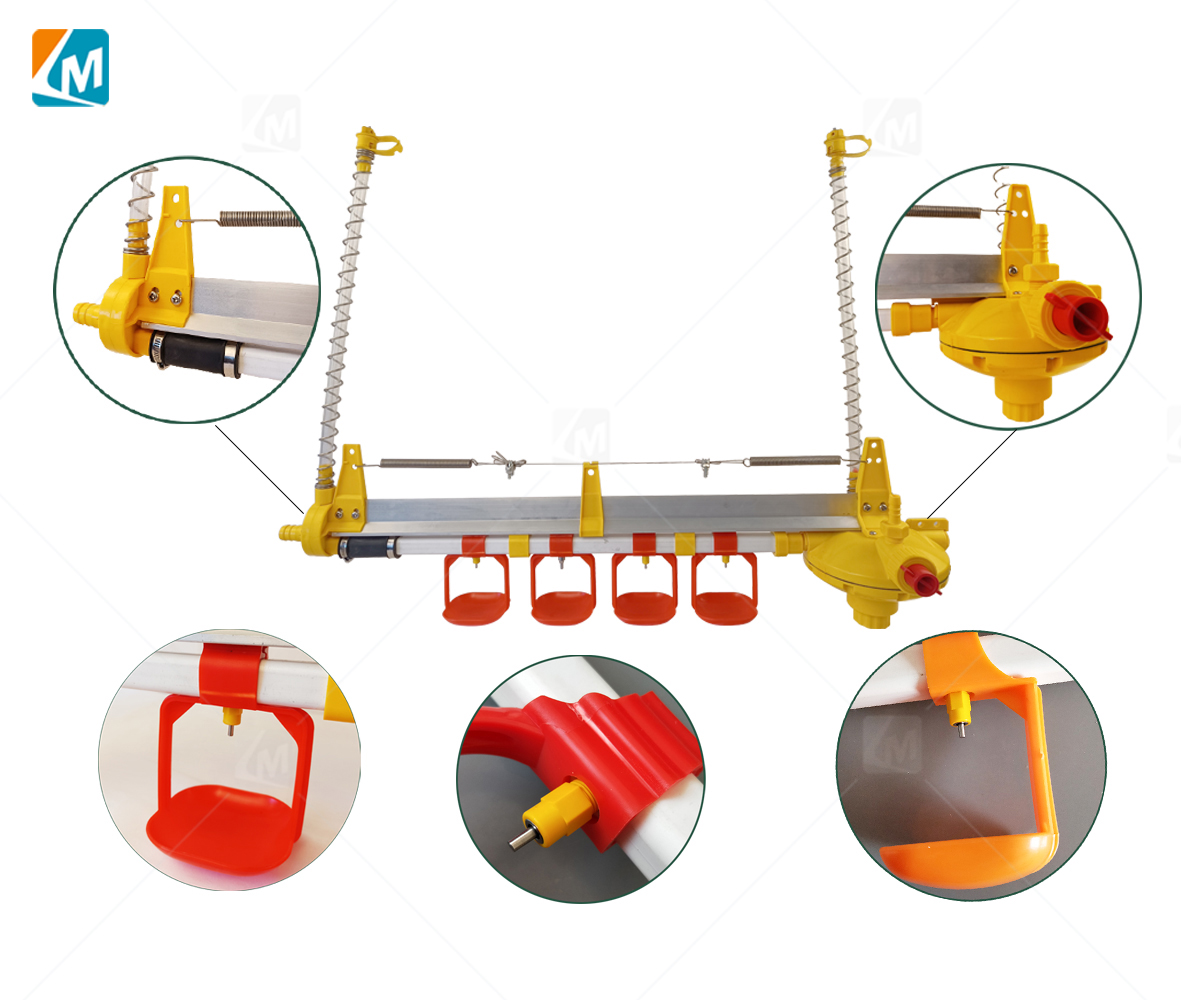

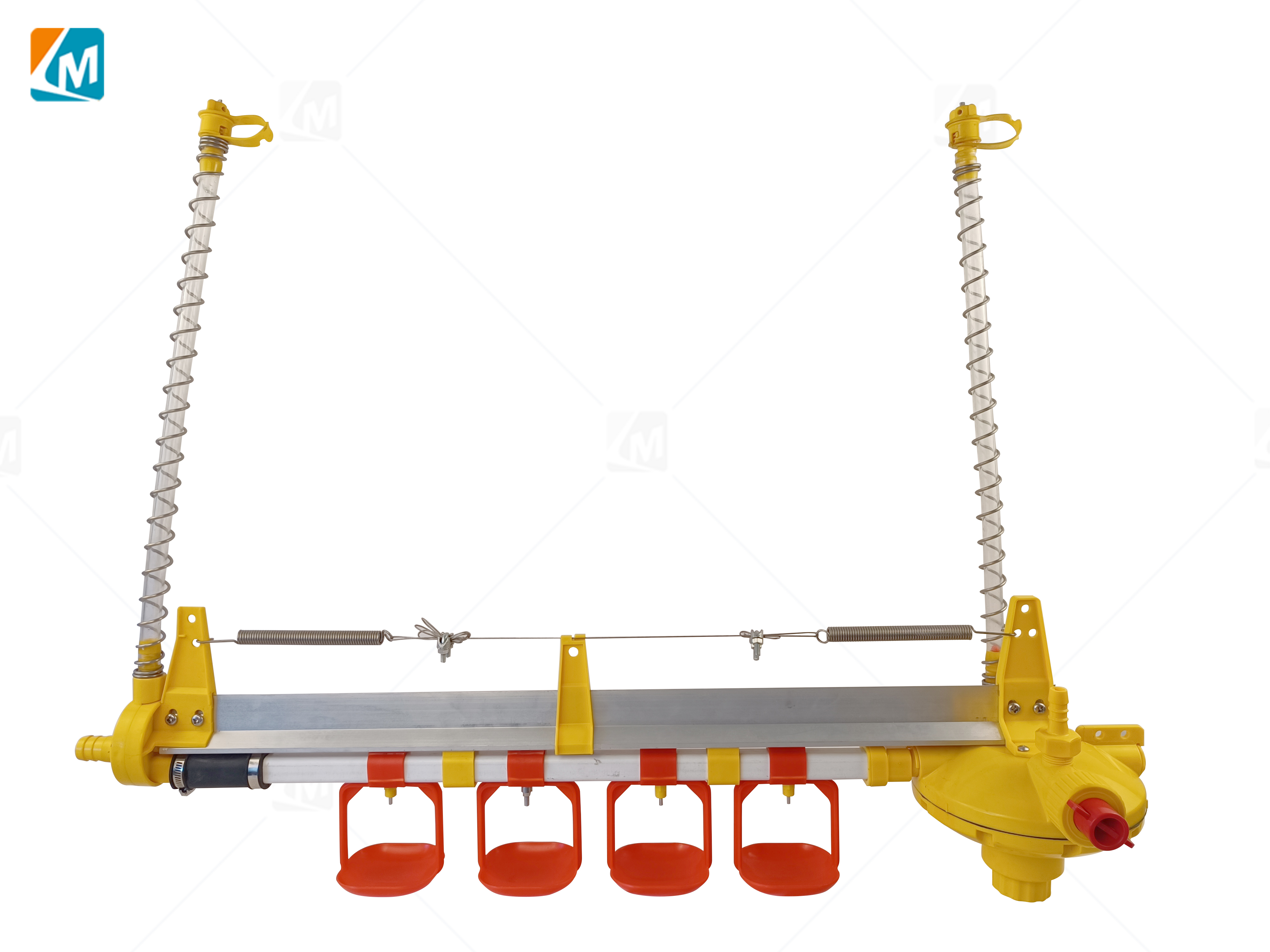

The fully automatic nipple drinker system consists of core components such as a pressure regulating valve, nipple drinker, hanging cup, square and round tubes. These components work together to establish a complete process from water source delivery to precise drinking for poultry, ensuring a stable, efficient, and clean drinking water supply.

2.2 Pressure Regulating Valve: The Core of Water Pressure Control

The pressure regulating valve is the key to stable system operation, responsible for dynamically balancing water pressure. Poultry have significantly different tolerances to water shock during different growth stages, such as brooding, rearing, and laying. For example, chicks, with their delicate oral and digestive systems, require gentle, trickling water pressure. Mature laying hens, on the other hand, require slightly stronger water pressure to ensure efficient drinking and feed intake. The pressure regulating valve in the nipple drinker system precisely controls water pressure within an optimal range (e.g., 0.02-0.1 MPa) based on the bird species, farming model (flat or caged), and growth cycle. This ensures that each bird receives consistent, optimal water supply through the nipple drinker, eliminating problems such as uneven drinking and splashing caused by abnormal water pressure. This ensures a stable water supply from the nipple drinker.

2.3 Nipple Drinker: An Intelligent Water-Saving Terminal

Nipple drinkers, as the core interface with the poultry, utilize a "trigger-seal" design. Under normal conditions, high-precision silicone or metal seals tightly seal, preventing water from leaking out. When poultry peck at the trigger, the seal instantly opens, allowing water to flow out in precise beads or streams. Made of corrosion-resistant and wear-resistant engineering plastics (such as PA66) and stainless steel components, it withstands ammonia and disinfectant corrosion in the farming environment, with a service life of 3-5 years. Its unique water supply logic achieves a water utilization rate exceeding 95%, saving over 40% compared to traditional drinking equipment. This truly delivers "water on demand, leak-free," making it a key component in the nipple drinker system for efficient water conservation and precise drinking.

2.4 Hanging Cup: Hygienic Collection Unit

The hanging cup is a crucial component of the nipple drinker, responsible for collecting and temporarily storing water. The cup is made of food-grade PP, with a fluid-dynamically optimized edge curve to suit poultry's drinking habits, guiding the water flow in an orderly manner and minimizing splashing. Some hanging cups are equipped with self-cleaning diversion channels to reduce the risk of bacterial growth. The striking colors, such as orange-red and bright yellow, appeal to poultry's visual preferences and encourage them to drink from nipple drinkers. Their excellent drop resistance ensures long-term, stable operation, and complements nipple drinkers in providing clean, efficient water supply.

2.5 Square and Round Tubes: Water Delivery "Arteries"

Square and round tubes serve as the main water delivery channels, working in tandem. Square tubes (mostly made of PVC-U, with a wall thickness of 2-3mm) offer excellent assembly stability thanks to their regular rectangular cross-section, facilitating rigid connections to pressure regulating valves, branch connectors, and other components. They serve as the system's main water supply line, ensuring stable water pressure transmission in large-span poultry houses and supplying water to nipple drinkers and other components. Round tubes (available in PE or stainless steel, with diameters of 16-32mm) offer flexible adaptability and can be bent to bypass obstacles in breeding equipment, particularly for precise placement in multi-story cages. Their smooth inner surface (roughness ≤ 0.05mm) ensures unimpeded water flow, reduces water delivery energy consumption, and ensures a stable water supply to nipple drinkers.

3. Comparison with Traditional Water Bowls: Advantages of the Nipple Drinker System

3.1 Water Quality Assurance

Traditional open water bowls are prone to feces accumulation and feather drop, and have bacterial counts exceeding 80%. The fully automatic nipple drinker system, through its sealed water delivery and low-residue hanging cup design, isolates the water source from pollutants in the aquaculture environment. The nipple drinker's triggered water supply further reduces water exposure, reducing bacterial growth by 90%. This effectively cuts off the transmission chain of intestinal diseases in poultry at the drinking point, resulting in a 60% reduction in Salmonella and E. coli infection rates, highlighting the nipple drinker system's absolute superiority in ensuring water quality.

3.2 Water Saving and Cost Dimensions

Traditional water bowls consume three times more water per day than required due to evaporation and splashing. The nipple drinker system's precisely triggered water supply and precise water diversion through the hanging cups saves over 30L of water per 1,000 birds per day, saving a farming operation over 100,000 yuan in annual water savings (based on a poultry house with 10,000 birds). Furthermore, the system operates fully automatically, eliminating the need for frequent manual water changes. One person can manage the drinking water systems of five to eight standardized poultry houses, reducing labor costs by over 50% and avoiding stress reactions in poultry caused by untimely manual water changes. This demonstrates the high efficiency of the nipple drinker system in terms of both water conservation and labor costs.

3.3 Farming Benefits

For broiler chickens, the precise water supply provided by nipple drinker systems can shorten drinking times by 20%, promote consistent feeding and drinking rhythms, and reduce feed-to-meat ratios by 0.08-0.12. In laying hens, which are sensitive to water quality during the laying period, the clean water provided by nipple drinkers can increase egg quality by 5%-8%, strengthen eggshells, and reduce breakage. For duck and goose farming, nipple drinker systems can adjust the cup volume (15-50ml to suit different ages) to meet the waterfowl's swimming habits while eliminating the widespread moisture contamination of traditional water lines and reducing ammonia concentrations in poultry houses by over 15%. This comprehensively improves farming efficiency and demonstrates the value of nipple drinker systems.

4. Scenario Adaptability and Development Potential

4.1 Adaptability to Diverse Farming Scenarios

From broiler farms with tens of thousands of chickens to specialized laying hen cooperatives, nipple drinker systems demonstrate exceptional adaptability. Broiler farming requires high water efficiency during its rapid growth cycle, and nipple drinkers precisely meet this requirement. Layer farming is sensitive to water quality during its laying period, and nipple drinker systems ensure clean drinking water. Duck and goose farming takes into account the habits and hygiene needs of waterfowl. Nipple drinkers, combined with hanging cups, offer flexible adjustments to suit various farming scenarios, and are becoming standard equipment.

4.2 Intelligent Development Potential

Amid the wave of intelligent farming, nipple drinker systems can be integrated with IoT modules to monitor the frequency and amount of water consumed by flocks through nipple drinkers in real time. This provides "drinking behavior-health status" correlation analysis for farming management, facilitating digital precision farming. In the future, nipple drinker systems will continue to evolve, incorporating more intelligent sensing and data analysis capabilities, driving poultry farming towards greener and more efficient directions and becoming a core driver for the upgrading of the farming industry.

In summary, the fully automatic nipple drinker system, with its precise structure and excellent functions, demonstrates significant advantages in water quality assurance, water conservation and efficiency improvement, and improved breeding benefits. It is adaptable to diverse breeding scenarios and has the potential for intelligent development. It will surely deeply reshape the poultry farming drinking water ecology and promote the industry to a new stage of high-quality development. As the core of the system, the nipple drinker will also continue to play a key role in it.
