The automatic feeding system has become the standard configuration for modern chicken farms, and the Feeder Pan is the final feeding point where broilers, layers or breeders access feed. Unlike simple open troughs, the Feeder Pan is engineered with a protective grille, adjustable feed regulator, and anti-spill rim, which work together to limit bird behavior of raking and tossing feed out of the tray. Many new farm operators underestimate the impact of a low-quality Feeder Pan, treating it as a minor accessory rather than a key part that shapes feed conversion ratio and flock health.
Traditional long feeding troughs allow chickens to step inside feed, contaminate pellets with manure, and push large amounts of feed onto litter. The Feeder Pan solves these pain points by creating separated feeding zones. Each Feeder Pan can serve a fixed number of birds, ensuring all chickens, including weaker individuals, get stable access to fresh feed. Uniform feeding reduces weight differences within the flock, lowers mortality, and improves overall production performance. For broiler farms targeting fast growth cycles, the consistency of feed supply from each Feeder Pan directly affects average daily gain and final carcass weight.
The working logic of the Feeder Pan system is straightforward: feed travels from the central hopper through an auger or chain conveying pipe and flows into each Feeder Pan. The built-in regulator controls how much feed accumulates inside the pan. As birds consume feed, the pipeline automatically replenishes material to maintain a stable feed level. This continuous supply eliminates the risk of feed shortage and avoids frequent manual refilling work.
Not all Feeder Pan models fit every poultry growth phase. Manufacturers design different versions of Feeder Pan to match day-old chicks, growing broilers, pullets, and breeding stock. Selecting the wrong Feeder Pan will restrict feeding or increase waste, even if the rest of your automatic feeding line is high-end.
The chick starter Feeder Pan features a shallow tray and low grille, designed for newly hatched chicks with short legs. The low rim allows baby chickens to reach feed easily during the first week of brooding. Some starter Feeder Pan models come with removable grilles; once chicks grow bigger, farmers can take off the grille to expand feeding space. This flexible design means one Feeder Pan can transition from brooding phase to grow-out phase without full replacement.
Then there is the grower and finisher Feeder Pan, built with deeper trays and stronger grilles. Mature broilers have larger bodies and stronger beaks, so this type of Feeder Pan must withstand pecking and impact. The deeper structure holds more feed and prevents adult chickens from scratching feed out. Breeder farms also use special breeder Feeder Pan, which controls feed volume strictly to manage body weight of breeding chickens, preventing overfeeding that harms egg production.
Material choice determines service life, sanitation performance and cost of your Feeder Pan. Two mainstream materials dominate the market: food-grade plastic and stainless steel. Each material has clear pros and cons for poultry houses.
Most commercial farms choose high-density polyethylene plastic for the Feeder Pan. This plastic material is lightweight, impact-resistant, and not easy to crack under temperature changes inside chicken houses. It will not rust even when exposed to humid litter and poultry waste. Smooth inner surfaces of the plastic Feeder Pan stop feed residue from sticking, making daily cleaning much simpler. Good plastic Feeder Pan can resist UV degradation, which matters if part of the chicken house gets sunlight.
Stainless steel Feeder Pan is the premium option. It is extremely wear-resistant and easy to sanitize during thorough disinfection cycles. Stainless steel is ideal for farms with strict biosecurity standards, such as parent stock breeder sites. The downside is higher upfront cost and heavier weight. Many large farms combine both materials: plastic Feeder Pan for general broiler production and stainless steel Feeder Pan for breeding houses. Avoid thin recycled plastic options, as cheap Feeder Pan will crack quickly, leak feed and create extra labor work.
When comparing different suppliers, farm buyers should not only check price, but examine core functional features of the Feeder Pan. These small design details directly influence feed waste rate and flock uniformity over years of use.
The adjustable feed regulator is one of the most critical parts on a qualified Feeder Pan. Farmers can turn the regulator up or down to raise or lower feed depth inside the pan. For young chicks, set a shallow feed level; for grown broilers, increase feed volume. A poorly designed regulator cannot lock stably, leading to inconsistent feed levels across every Feeder Pan on the line.

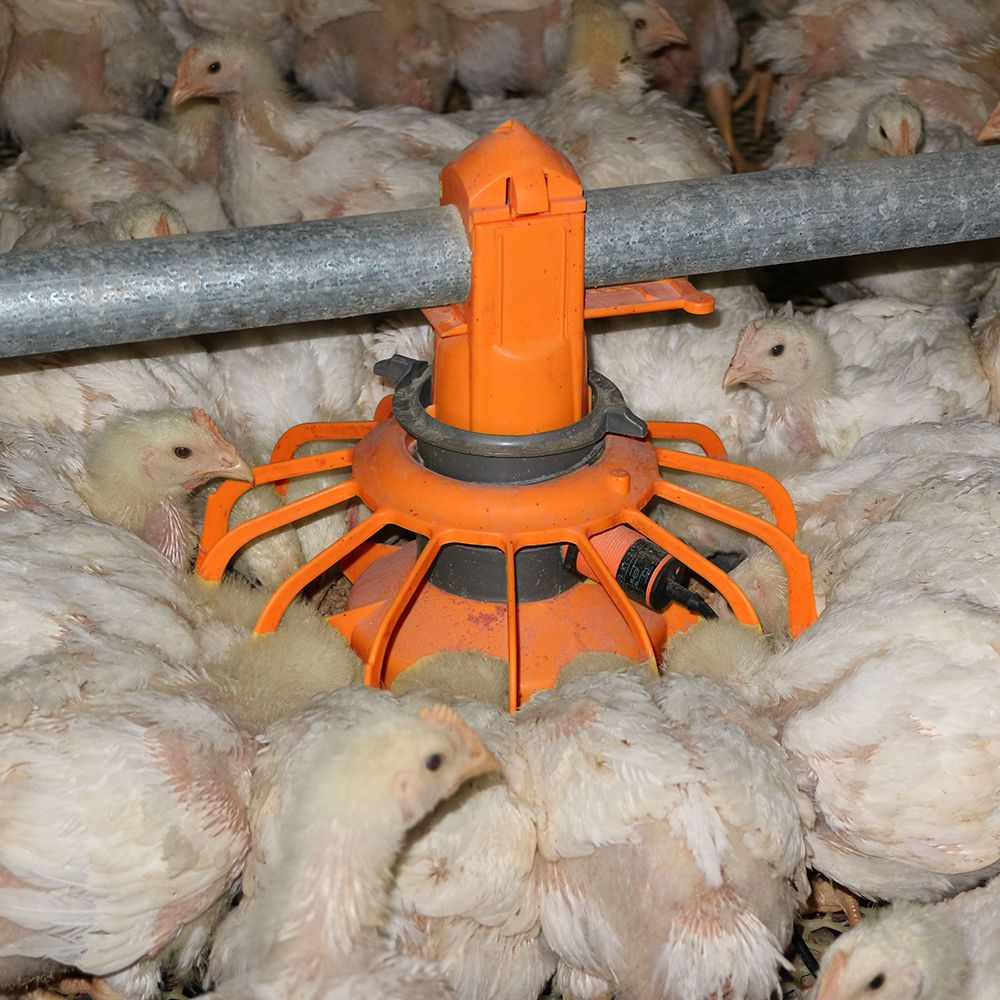

Anti-spill rim is another must-have feature. This raised edge stops chickens from raking feed out onto bedding. The feeding grille also serves multiple purposes: it prevents chickens from standing inside the Feeder Pan and fouling feed with manure, while separating feeding positions so dominant birds cannot block weaker chicks from eating. The number of feeding openings on each Feeder Pan decides how many chickens can feed at the same time. Enough feeding slots reduce competition and reduce weight gaps in your flock.
Even top-quality Feeder Pan will not perform well with improper installation. Installation height, horizontal balance and spacing between each Feeder Pan all need precise adjustment according to chicken age.
The hanging height of the Feeder Pan should change as birds grow. For day-old chicks, lower the Feeder Pan close to litter so chicks can access feed conveniently. As chickens gain height, lift the whole feeding line gradually. The rule of thumb is to keep the pan rim aligned with the chicken’s back height. If hung too low, chickens will step into the Feeder Pan; hung too high, small birds cannot reach feed.
Spacing between adjacent Feeder Pan also follows industry standards. You need to calculate total bird quantity and feeding positions per Feeder Pan before layout. The feeding line must stay horizontal. If one Feeder Pan sits lower than others, excessive feed accumulates in that pan and causes spoilage. During installation, inspect all connecting clips and suspension ropes to avoid tilting of the Feeder Pan after long-time operation.
Regular maintenance extends the lifespan of your Feeder Pan and maintains feed hygiene. Many farms only focus on the main auger motor but ignore routine checks on every Feeder Pan, which leads to hidden losses.
Every day, walk through the chicken house and check each Feeder Pan. Remove leftover feed clumps, moldy material and litter debris trapped inside the Feeder Pan. Moldy feed inside the Feeder Pan may trigger intestinal diseases and reduce feed intake. At the end of each flock cycle, fully empty the feeding line and clean every Feeder Pan. Disinfect all surfaces before new chicks arrive.
Check grilles, regulators and pan bodies for cracks. A cracked Feeder Pan needs immediate replacement, otherwise feed leakage will waste resources. Lubricate moving adjusting parts occasionally to ensure smooth regulation of feed depth. Keep spare Feeder Pan parts on hand for fast replacement, to minimize downtime between flocks.
Many farm owners hesitate to invest in premium automatic feeding equipment. However, the Feeder Pan brings measurable economic returns mainly by cutting feed waste and labor input.
Feed cost accounts for about 60% to 70% of total poultry farming expenditure. A low-grade feeding trough may have feed waste up to 5% or higher. A well-designed Feeder Pan can reduce spillage down to 1% to 2%. For a 50,000-bird broiler farm, this small drop in waste saves tons of feed every batch. Over multiple production cycles, savings quickly offset the purchase cost of the Feeder Pan system.
Besides feed saving, the Feeder Pan automatic system reduces manual feeding work. Workers no longer carry buckets and distribute feed manually across the house. Labor can shift focus to flock health monitoring, environmental control and farm management. Better flock uniformity from balanced feeding also improves sale weight and reduces culling rate. All these benefits make the Feeder Pan a worthwhile capital investment for expanding poultry operations.
During long-term operation, operators often encounter typical issues with the Feeder Pan. Knowing fast troubleshooting methods can avoid interruptions to chicken feeding.
The most frequent problem is uneven feed amount among different Feeder Pan. This usually comes from unlevel feeding lines or stuck regulators. First check if the pipeline is horizontal, then reset each regulator on the Feeder Pan. The second issue is feed bridging, where feed blocks above the Feeder Pan and stops flow. Broken or deformed grilles on a Feeder Pan also create feed spillage and contamination. Replace damaged Feeder Pan components immediately.
Another issue is birds refusing to eat from the Feeder Pan. This rarely means defective Feeder Pan. Usually it is caused by improper hanging height or wrong feed depth setting. Re-adjust the height and regulator to match the bird age. Train farm staff to inspect every Feeder Pan routinely. Early detection of minor faults prevents big losses for your poultry farm.
